안녕하세요. 최근 MT7621이 사용되는 저가 공유기가 많은 상황입니다.
개인적으로도 MT7621 기기를 구해서 OpenWRT 로 포팅해 최근 22.03 릴리즈에 들어와있는 상태입니다.
다름이 아니라 미꾸라지 OpenWRT 패키지를 mt7621 버전으로 빌드가 가능한지 여쭙고싶습니다.
이전 OpenWRT 버전의 경우 mips_24kc등으로 아키텍쳐셋 별로 나눠져있었는데, 22.03부터는 칩셋별로 빌드가 되있는 상황이라 요청드립니다. mt76x8로 설치하여도 일단은 문제가 없겠지만 혹시를 모르니까요.
문제 없습니다. 제가 ramips-rt7621 에 대한 빌드를 내부적으로 걸어놓았는데요, 별 문제(?)가 없다면 약 4 ~ 6 시간후에 Index of /releases/openwrt/packages-22.03/ 에서 다운로드 받으실 수 있으실 것입니다.
@markxman If you’re familar with SSH, please check the following things:
netstat -an command to see it.mudrun process is running using ps command.FYI I’m not savvy with SSH yet but can pick-up some instructions. Below is the screenshot result from netstat -an.
root@ArcherAX23:~# netstat -an
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp 0 0 127.0.0.1:53 0.0.0.0:* LISTEN
tcp 0 0 192.168.254.100:53 0.0.0.0:* LISTEN
tcp 0 0 255.255.255.255:8282 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN
tcp 0 0 192.168.1.1:53 0.0.0.0:* LISTEN
tcp 0 0 192.168.254.100:38240 192.168.254.254:53 TIME_WAIT
tcp 0 688 192.168.1.1:22 192.168.1.147:51887 ESTABLISHED
tcp 0 0 192.168.254.100:38250 192.168.254.254:53 TIME_WAIT
tcp 0 0 fd56:5fc9:f1d5::1:53 :::* LISTEN
tcp 0 0 :::443 :::* LISTEN
tcp 0 0 fe80::f2a7:31ff:fe38:98f5:53 :::* LISTEN
tcp 0 0 :::80 :::* LISTEN
tcp 0 0 :::22 :::* LISTEN
tcp 0 0 ::1:53 :::* LISTEN
tcp 0 0 fe80::f2a7:31ff:fe38:98f4:53 :::* LISTEN
tcp 0 0 fe80::f2a7:31ff:fe38:98f4:53 :::* LISTEN
udp 0 0 0.0.0.0:36652 0.0.0.0:*
udp 0 0 127.0.0.1:53 0.0.0.0:*
udp 0 0 192.168.254.100:53 0.0.0.0:*
udp 0 0 192.168.1.1:53 0.0.0.0:*
udp 0 0 0.0.0.0:67 0.0.0.0:*
udp 0 0 :::546 :::*
udp 0 0 :::547 :::*
udp 0 0 fd56:5fc9:f1d5::1:53 :::*
udp 0 0 fe80::f2a7:31ff:fe38:98f4:53 :::*
udp 0 0 ::1:53 :::*
udp 0 0 fe80::f2a7:31ff:fe38:98f4:53 :::*
udp 0 0 fe80::f2a7:31ff:fe38:98f5:53 :::*
raw 0 0 ::%4591344:58 ::%4239133:* 58
raw 0 0 ::%4591360:58 ::%4239133:* 58
Active UNIX domain sockets (servers and established)
Proto RefCnt Flags Type State I-Node Path
unix 3 [ ] STREAM CONNECTED 3622
unix 2 [ ACC ] STREAM LISTENING 1124 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 649 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 2288
unix 3 [ ] STREAM CONNECTED 1871 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 773
unix 10 [ ] DGRAM CONNECTED 647 /dev/log
unix 3 [ ] STREAM CONNECTED 2728 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 488
unix 3 [ ] STREAM CONNECTED 3680 /var/run/ubus/ubus.sock
unix 2 [ ] DGRAM 1734 /var/run/wpa_supplicant/global
unix 2 [ ] DGRAM 932 /var/run/hostapd/global
unix 3 [ ] STREAM CONNECTED 1227
unix 2 [ ] DGRAM 1125
unix 2 [ ] DGRAM 3300
unix 3 [ ] STREAM CONNECTED 1126 /var/run/ubus/ubus.sock
unix 2 [ ] DGRAM 5239 /var/run/hostapd/phy1-ap0
unix 2 [ ] DGRAM CONNECTED 1733
unix 2 [ ] DGRAM CONNECTED 14956
unix 3 [ ] STREAM CONNECTED 1749
unix 3 [ ] STREAM CONNECTED 775 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 4383 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 2289 /var/run/ubus/ubus.sock
unix 2 [ ] DGRAM CONNECTED 4634
unix 3 [ ] STREAM CONNECTED 669 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 934
unix 3 [ ] STREAM CONNECTED 953 /var/run/ubus/ubus.sock
unix 2 [ ] DGRAM CONNECTED 931
unix 3 [ ] STREAM CONNECTED 4382
unix 3 [ ] STREAM CONNECTED 2313
unix 3 [ ] STREAM CONNECTED 935 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 3258
unix 2 [ ] DGRAM CONNECTED 2285
unix 3 [ ] STREAM CONNECTED 2727
unix 3 [ ] STREAM CONNECTED 4555
unix 3 [ ] STREAM CONNECTED 1870
unix 3 [ ] STREAM CONNECTED 2709 /var/run/ubus/ubus.sock
unix 3 [ ] STREAM CONNECTED 648
unix 2 [ ] DGRAM CONNECTED 723
unix 3 [ ] STREAM CONNECTED 1750 /var/run/ubus/ubus.sock
unix 2 [ ] DGRAM CONNECTED 3514
unix 2 [ ] DGRAM CONNECTED 3628
unix 3 [ ] STREAM CONNECTED 774 /var/run/ubus/ubus.sock
While mudrun process does appear on the result below.
root@ArcherAX23:~# ps
PID USER VSZ STAT COMMAND
1 root 2384 S /sbin/procd
2 root 0 SW [kthreadd]
3 root 0 SW [pool_workqueue_]
4 root 0 IW< [kworker/R-rcu_g]
5 root 0 IW< [kworker/R-rcu_p]
6 root 0 IW< [kworker/R-slub_]
7 root 0 IW< [kworker/R-netns]
8 root 0 IW [kworker/0:0-eve]
9 root 0 IW< [kworker/0:0H-ev]
10 root 0 IW [kworker/0:1-mm_]
11 root 0 IW [kworker/u8:0-ph]
12 root 0 IW< [kworker/R-mm_pe]
13 root 0 IW [rcu_tasks_trace]
14 root 0 SW [ksoftirqd/0]
15 root 0 IW [rcu_sched]
16 root 0 SW [migration/0]
17 root 0 SW [cpuhp/0]
18 root 0 SW [cpuhp/1]
19 root 0 SW [migration/1]
20 root 0 SW [ksoftirqd/1]
23 root 0 SW [cpuhp/2]
24 root 0 SW [migration/2]
25 root 0 SW [ksoftirqd/2]
27 root 0 IW< [kworker/2:0H-kb]
28 root 0 SW [cpuhp/3]
29 root 0 SW [migration/3]
30 root 0 SW [ksoftirqd/3]
32 root 0 IW< [kworker/3:0H-kb]
34 root 0 IW [kworker/u10:0-e]
35 root 0 IW< [kworker/R-inet_]
37 root 0 SW [oom_reaper]
38 root 0 IW< [kworker/R-write]
39 root 0 SW [kcompactd0]
40 root 0 IW< [kworker/R-pencr]
41 root 0 IW< [kworker/R-pdecr]
42 root 0 IW< [kworker/R-kbloc]
43 root 0 IW< [kworker/R-blkcg]
44 root 0 SW [watchdogd]
45 root 0 IW [kworker/2:1-eve]
55 root 0 SW [kswapd0]
56 root 0 IW< [kworker/0:1H-kb]
58 root 0 IW< [kworker/R-kthro]
86 root 0 IW [kworker/3:1-eve]
99 root 0 IW [kworker/u9:2-ev]
164 root 0 IW [kworker/1:3-eve]
165 root 0 IW [kworker/1:4-eve]
180 root 0 SW [spi0]
257 root 0 IW [kworker/u9:3-ev]
287 root 0 SW [napi/mtk_eth-5]
288 root 0 SW [napi/mtk_eth-6]
308 root 0 IW< [kworker/R-mld]
311 root 0 IW< [kworker/R-ipv6_]
312 root 0 IW< [kworker/1:1H-kb]
313 root 0 IW< [kworker/R-dsa_o]
314 root 0 IW< [kworker/R-kstrp]
426 root 0 SW [irq/20-mt7530]
459 root 0 IW< [kworker/3:1H-kb]
463 root 0 SW [irq/25-keys]
464 root 0 SW [irq/26-keys]
480 root 0 IW [kworker/3:2-mm_]
482 root 0 IW [kworker/u10:2-e]
602 root 0 SWN [jffs2_gcd_mtd4]
670 ubus 1536 S /sbin/ubusd
671 root 1088 S /sbin/askfirst /usr/libexec/login.sh
706 root 1240 S /sbin/urngd
782 root 0 IW [kworker/2:2-mm_]
799 root 0 IW< [kworker/R-cfg80]
808 root 0 SW [napi/phy0-7]
809 root 0 SW [napi/phy0-8]
810 root 0 RW [napi/phy0-9]
811 root 0 SW [napi/phy0-10]
812 root 0 SW [napi/phy0-11]
824 root 0 RW [mt76-tx phy0]
850 root 0 IW [kworker/u8:1]
1071 logd 2352 S /sbin/logd -S 128
1125 root 3916 S /sbin/rpcd -s /var/run/ubus/ubus.sock -t 30
1329 root 0 IW< [kworker/2:2H]
1398 root 1304 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -p 22 -K 300 -T 3 -W 262144
1504 root 2940 S {hostapd} /sbin/ujail -t 5 -n hostapd -U network -G network -C /etc/capabilities/wpad.jso
1505 root 2940 S {wpa_supplicant} /sbin/ujail -t 5 -n wpa_supplicant -U network -G network -C /etc/capabil
1549 network 4688 S /usr/sbin/wpa_supplicant -n -s -g /var/run/wpa_supplicant/global
1550 network 4984 S /usr/sbin/hostapd -s -g /var/run/hostapd/global
1551 root 0 IW< [kworker/1:2H]
1570 root 2856 S /sbin/netifd
1690 root 1784 S /usr/sbin/odhcpd
1794 root 8656 S /opt/mudfish-pi/2.7.8/bin/mudrun -P -a 192.168.1.1/24
1866 root 3096 S /usr/sbin/uhttpd -f -h /www -r ArcherAX23 -x /cgi-bin -u /ubus -t 60 -T 30 -k 20 -A 1 -n
1943 root 5640 S /opt/mudfish-pi/2.7.8/bin/mudrun -P -a 192.168.1.1/24
2399 root 2940 S {ntpd} /sbin/ujail -t 5 -n ntpd -U ntp -G ntp -C /etc/capabilities/ntpd.json -c -u -r /bi
2434 ntp 1400 S /usr/sbin/ntpd -n -N -S /usr/sbin/ntpd-hotplug -p 0.openwrt.pool.ntp.org -p 1.openwrt.poo
2688 root 1400 S udhcpc -p /var/run/udhcpc-wan.pid -s /lib/netifd/dhcp.script -f -t 0 -i wan -x hostname:A
2690 root 1248 S odhcp6c -s /lib/netifd/dhcpv6.script -P0 -t120 wan
2977 root 2940 S {dnsmasq} /sbin/ujail -t 5 -n dnsmasq -u -l -r /bin/ubus -r /etc/TZ -r /etc/dnsmasq.conf
3000 dnsmasq 1864 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.cfg01411c -k -x /var/run/dnsmasq/dnsmasq.cfg01
3581 root 1324 R /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -p 22 -K 300 -T 3 -W 262144 -2 9
3582 root 1428 S -ash
3591 root 0 IW [kworker/u10:1-e]
3598 root 0 IW [kworker/u9:4-ev]
3611 root 0 IW [kworker/u10:3-e]

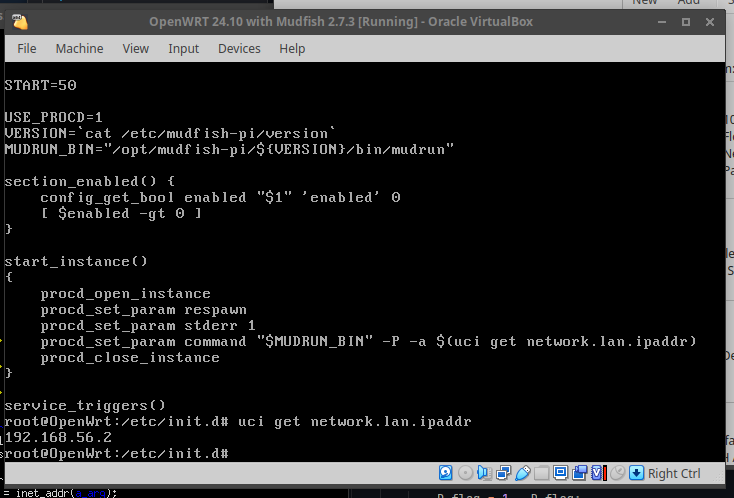

3634 root 1408 R psSomething is wrong on your OpenWRT settings. What’s the result of uci get network.lan.ipaddr command? Here is an example from my machine:
However if I checked your router properly, I think it should show “192.168.1.1” instead of “192.168.1.1/24”.
That’s a reason why it’s trying to connect 255.255.255.255:8282.
Yup, change the network ip and got it working. Thanks a lot @weongyo
